安全閥 Safety Valve

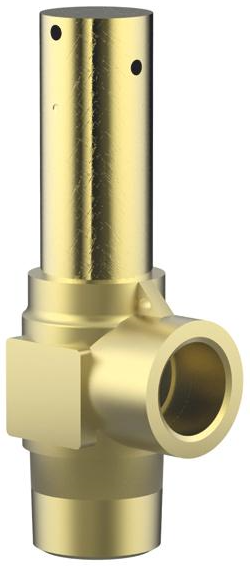

Herose Safety Valve 低溫安全閥 (thread NPT)
液態工業氣體專用
淨油處理
使用流體: 液態工業氣體,如氧氣、氮氣、氬氣、二氧化碳和液化天然氣…等
產品尺寸: 1/2" ~ 2” (DN 15~DN 50)
溫度範圍: –196° C ~ +185° C
使用壓力: 2 bar ~ 50 bar
材質: 銅、白鐵 (皆有)

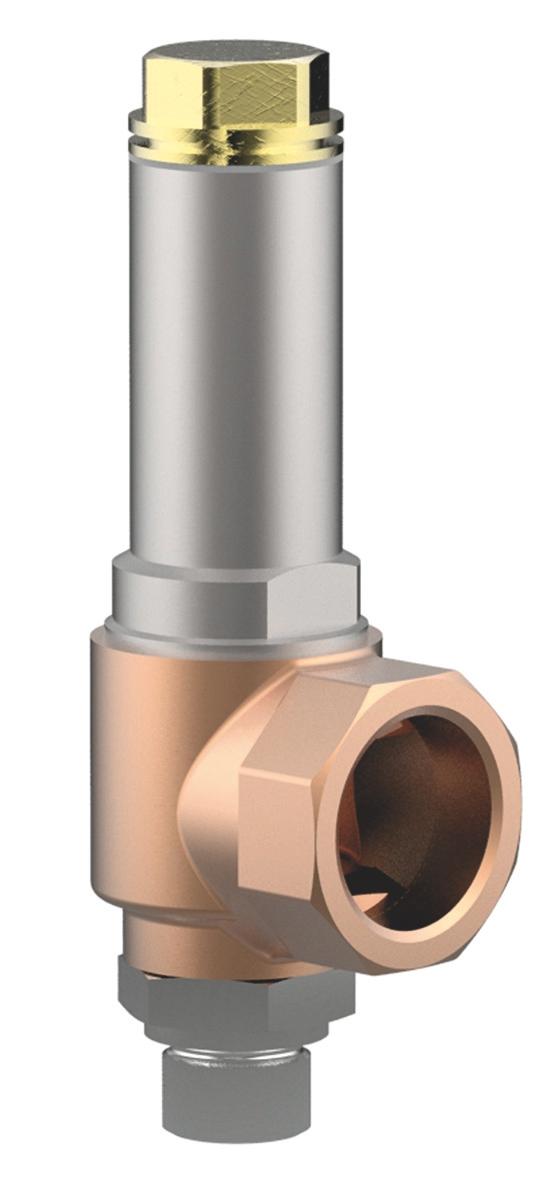

Type 06388 – Safety Valve 低溫安全閥

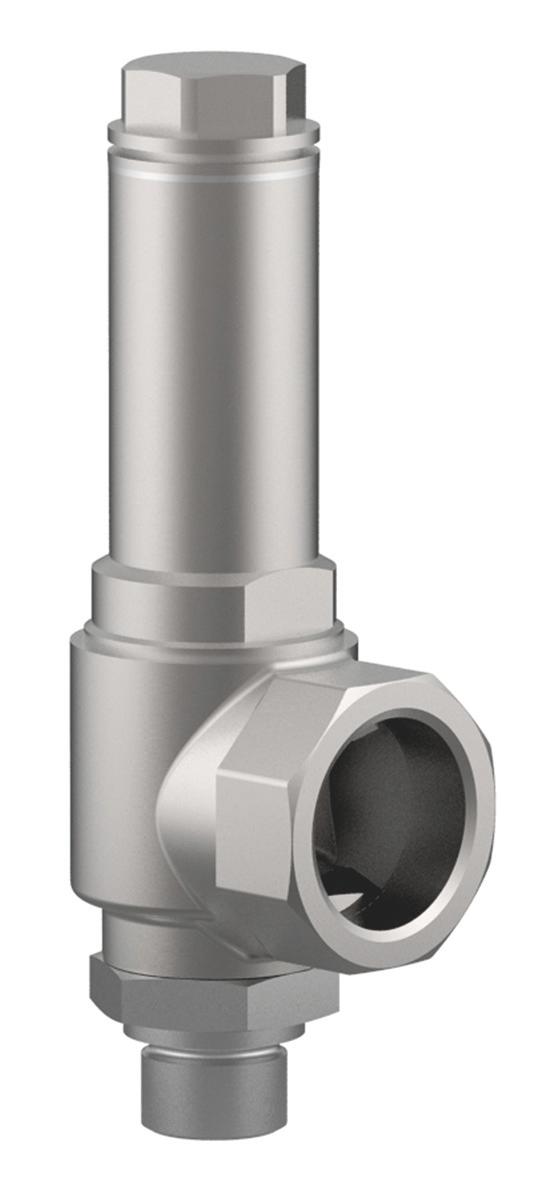

Type 06383 – Safety Valve 低溫安全閥
Applications:
Provided as safety device for protection against excessive pressure in stationary and moveable gas cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Full lift safety valve, orifice d0=23mm standard safety valve,
with carbon filled PTFE valve seal, closed bonnet
"cleaned and degreased for oxygen service"
Standard marking acc. to Pressure Equipment Directive 97/23/EC (PED) and ASME Code Section VIII.
Essential: Valves are delivered at a set pressure, therefore when ordering please confirm set pressure, medium and temperature.
HEROSE 低溫安全閥認證
ASME Certificate
Vd TÜV type test approval
TÜV CERT- Zertifizierungsstelle
EG Baumusterprüfung (Modul B)
CE sign for our safety valves
TÜV NORD CERT GmbH & Co. KG
