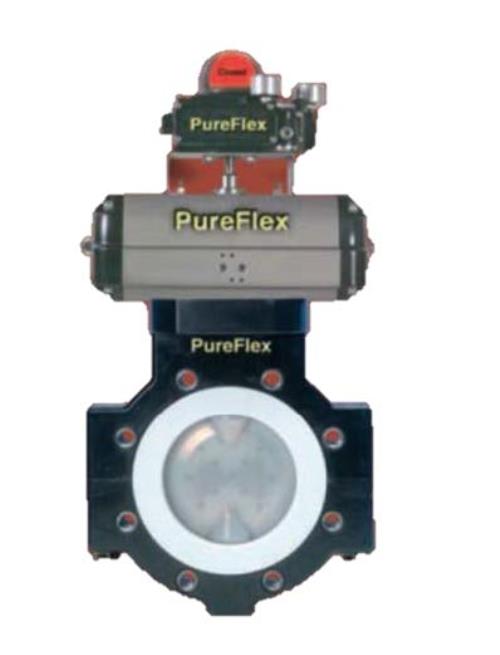

蝶閥 Butterfly Valve
• Durcor-62TM Composite Structural Housing .jpg)
• ANSI Dimensions
• 150 PSIG / Full Vacuum Rated
• Wafer & Lug Style
• Blowout-Proof, One Piece Disc / Stem.

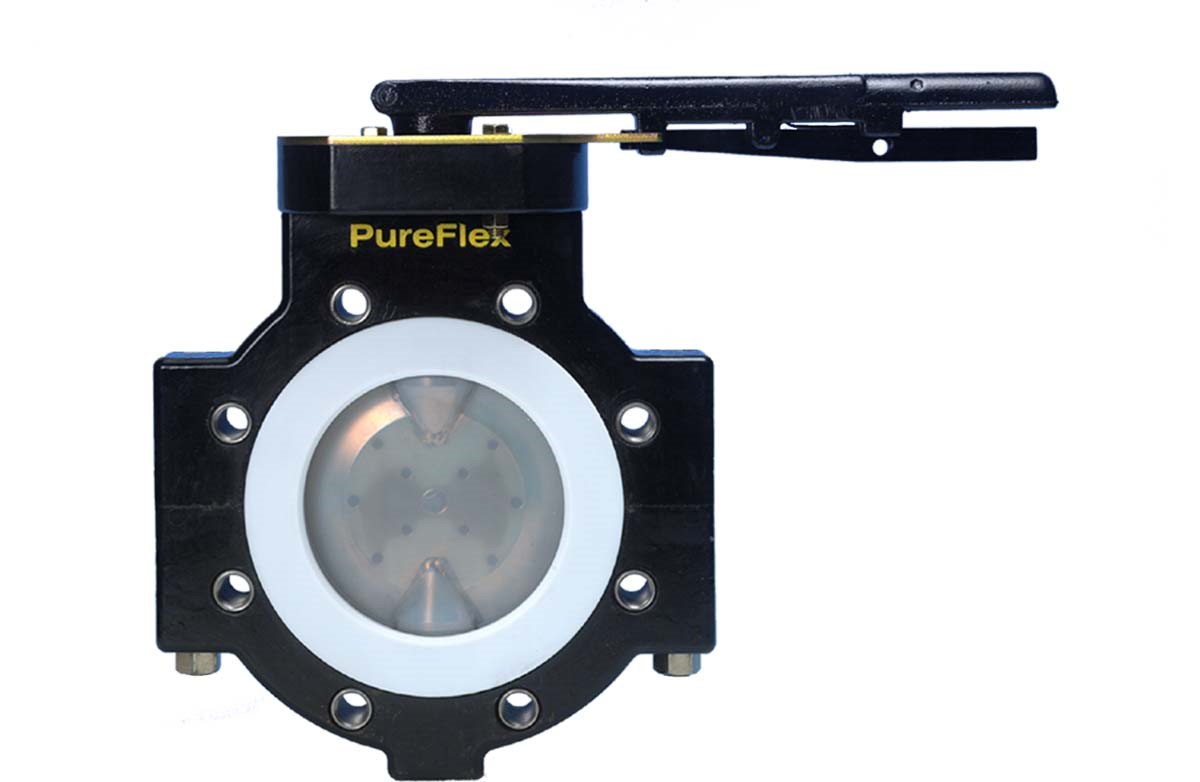

PureFlex 800 Series Butterfly Valves
• Seat Materials.jpg)
- PTFE
- UHMWPE
• Seat Energizers
- Silicone (standard)
- Viton (optional)
• Disc / Stem
- CF8M Stainless / PFA
- CF8M Stainless / UHMWPE
- CF8M Stainless Steel, Hastelloy C276, Titanium.
- CF8M Stainless Steel, Hastelloy C276, Titanium.
• Temperature Rating: (-)60°F to 250°F
• Pressure: Full vacuum to 150PSI

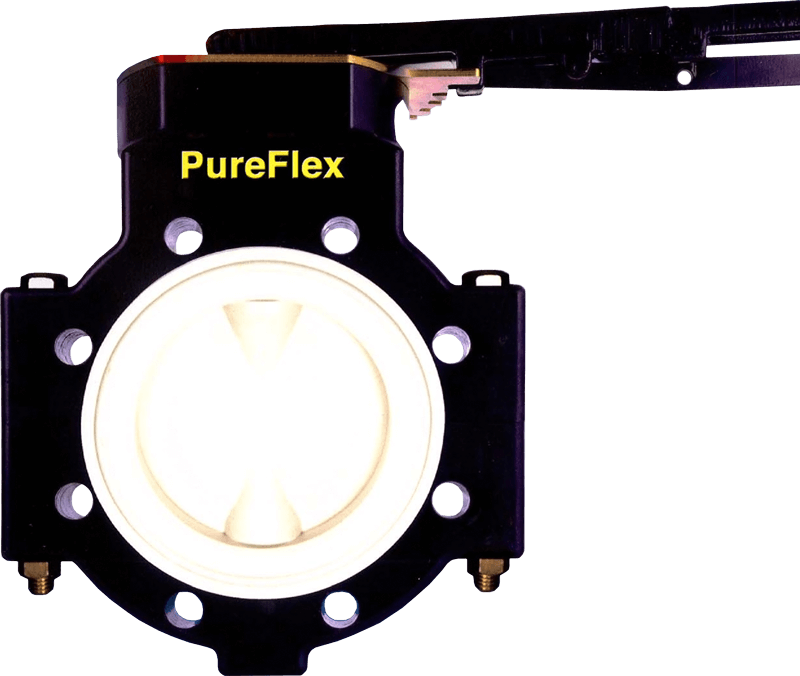

PureFlex 860 Series Butterfly Valves
• Seat Materials.png)
- EPDM (FDA Approved)
- Hypalon® CSM
• Disc / Stem
- Nickel Plated DCI / EPDM
- Nickel Plated DCI / Hypalon
- CF8M Stainless / UHMWPE
- CF8M Stainless Steel, Hastelloy C276, Titanium
• Temperature Rating: (-)60°F to 250°F
• Pressure: Full vacuum to 150PSI

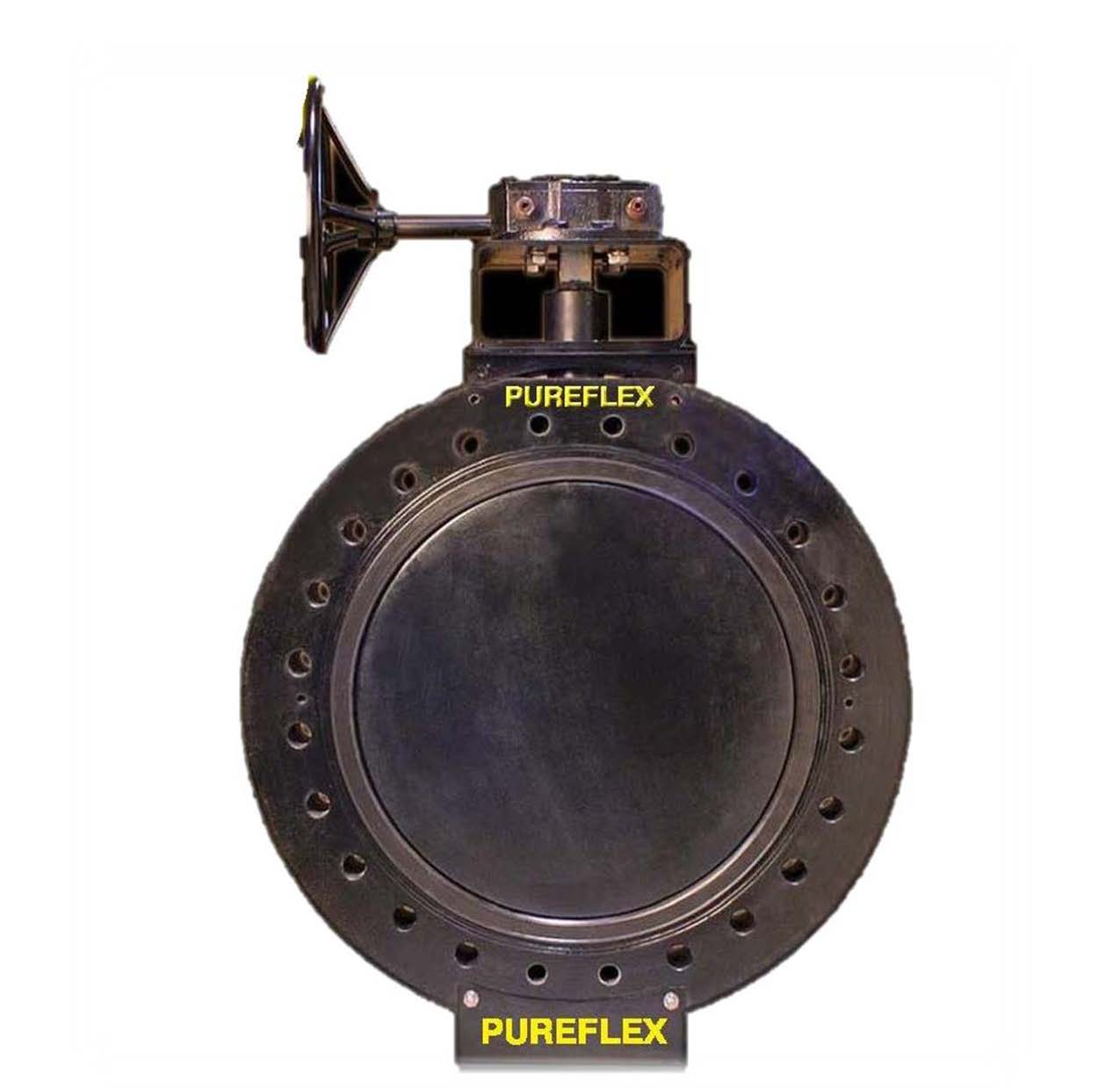

PureFlex 890 Series Butterfly Valves
• ANSI B16.5 Class 150 Flange Drilling
• Wafer & Lug Style
• Double Offset Design
• Glass / Derakane® 411 Body & Disc w/ double synthetic veil Derakane® 470 liner
• Glass / Derakane® 470 Disc
• 17-4PH Stainless Steel Shaft
• Viton Seat w/ Aluminum Backing ring
