Annular-groove heat exchanger
► Annular-groove Heat Exchangers - Type R / WA
■ Heat Exchanger for cooling and heating of corrosive media ■ Corrosion resistant one side: type R ■ Corrosion resistant both sides: type WA ■ Carbon fibre reinforcement (optional) |
|
Applications (examples) - Cooling or heating of hydrochloric acid, sulphuric acid or solvents - Heat transfer between two corrosive media - Use as a feed – bottom heat exchanger for column |
|
Special features - Both flow cross-sections are variable - No gaskets - Small overall height - Pure counter flow |
|
Benefits - Excellent heat transfer performance - Best automatic cleaning - Low maintenance cost - High plant availability |

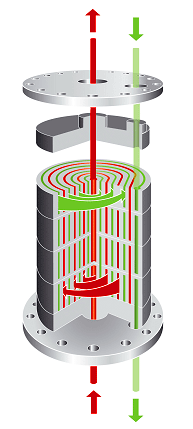

Scheme
annular-groove heat exchanger
(liquid-liquid)
Annular-groove heat exchanger Type R (section) |
Annular-groove heat exchanger Type R-6,9-05/03 |
|||||||||||||
Examples for duct arrangements | ||||||||||||||
|
