Wavy-groove Heat Exchanger
► Wavy-groove Heat Exchanger - Type RW ( 波浪形螺旋式石墨熱交換器)

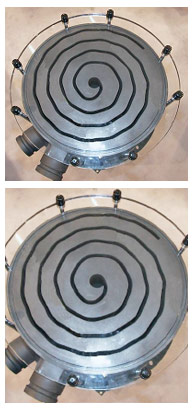

Graphite disk of a wavy-groove heat exchanger (process side) |
■ Special groove design for the application of annular-groove heat exchangers of R and WA types (single or both sides corrosion resistant) ■ Qualified for media with a high fouling tendency ■ Carbon fibre reinforcement (optional) |
Applications (examples) - Cooling of process media in the bio fuel production process - Heating and cooling applications in the production of synthetic fibres |
|
Special features - Special groove design for achieving maximum turbulent flow - Other features see R/WA types |
|
Benefits - Extremely low fouling risk - Excellent auto cleaning properties - Very low maintenance needs - Highest plant availability |
Examples for duct arrangements
Standard | |
Wavy-grooveon process or service side | |
Wavy-grooveon process and service side |
