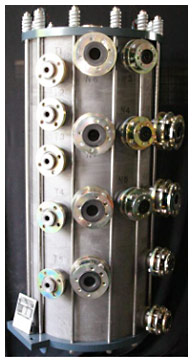

Conti-Reactor
► Conti-Reactor (硫酸稀釋系統)
Scheme block heat exchanger |
■ Mixing, heating and cooling of two or more process media reacting exothermically or endothermically within one continuous process ■ Multiple heating and cooling circuits possible ■ Maximum dwell time / reaction time depending on size of unit and volume flow (e.g. 15min at 0,7m³/hr) ■ All circuits are corrosion resistant |
Applications (examples) - Synthesis of active ingredients in agro-chemical industry by three separate, individually controlled steps - Continuous chlorination (Cl2+HCl+Educt) |
|
Special features - Designed for specific processes - Controlled input and output of heat at any stage of the process - Measuring of process data at any stage of the unit |
|
Benefits - Controllable, continuous mixing and heat exchanging processes with isothermal dwell sections - High process efficiency and recovery - Avoiding both overheating and subcoolingmeans careful product protection - Significantly lower equipment cost by combining reactor, heat exchanger andcontrolling devices in one single unit |
Annular-groove Separation Cooler

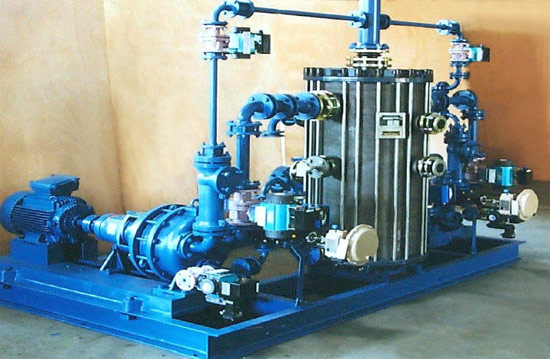

Separation cooler integrated in FRIATEC pump system
