Block heat exchanger
► Block heat exchanger
■ General purpose unit for cooling, heating, condensing and evaporating duties ■ Vertical or horizontal installation |
|
Applications (examples) - Heating pickling baths in steel industry - Heating and cooling of galvanising baths in metal finishing processes - Condensing and cooling of hydrochloric acid and other media - Evaporation of organic solvents and (in)organic acids |
|
Special features - Single- or double-row bores at the process side - Robust construction - Modular design - Easy to disassemble |
|
Benefits - Large transfer areas and comparatively low pressure drop on the process side - High operating pressures possibl - Mechanical clean ability |

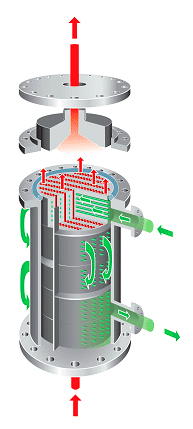

Scheme
block heat exchanger
Examples for duct arrangements

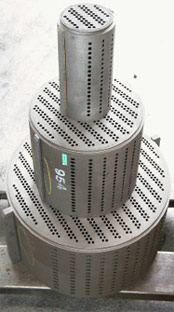

Graphite blocks GAB 1, GAB 3, GAB 5 |

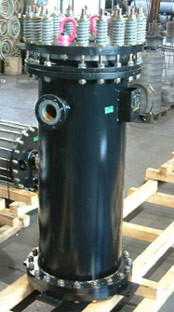

Block heat exchanger Type GAB 4-05-16-1 |

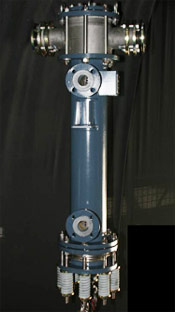

Block heat exchanger Type GAB 1-04-14-2 (with header for double pass) |
