Heat exchanger GN type
► Annular-groove Vent Condenser - Type GN / GH
■ Condenser for highly corrosive applications ■ Corrosion resistant both, service and product side ■ Vertical or horizontal installation ■ Dephlegmation applications possible ■ Inclusion of demister possible ■ Carbon fibre reinforcement (optional) |
|
Applications (examples) - Vent cooling of exhaust gas or vent condensing of corrosive vapours, e.g. for complying with VOCregulations (volatile organic compounds) - Condensing and separation of corrosive vapours at the inlet or outlet of vacuum pumps |
|
Special features - large flow cross-section - cGMP design (optional) - No gaskets - Large heat transfer area on product side |
|
Benefits - Excellent separation efficiency, e.g. for complying with exit air regulations - Small required space - Completely drainable - No batch or cross-contamination risk |

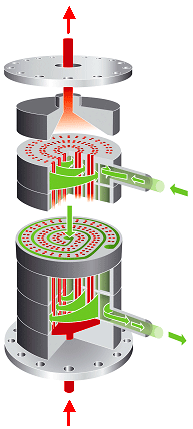

Scheme
annular-groove vent condenser
