產品目錄 PRODUCT CATALOG
HOME > 產品目錄 > 閥 > RICHTER 鐵氟龍內襯閥 > 蝶閥 Butterfly Valve

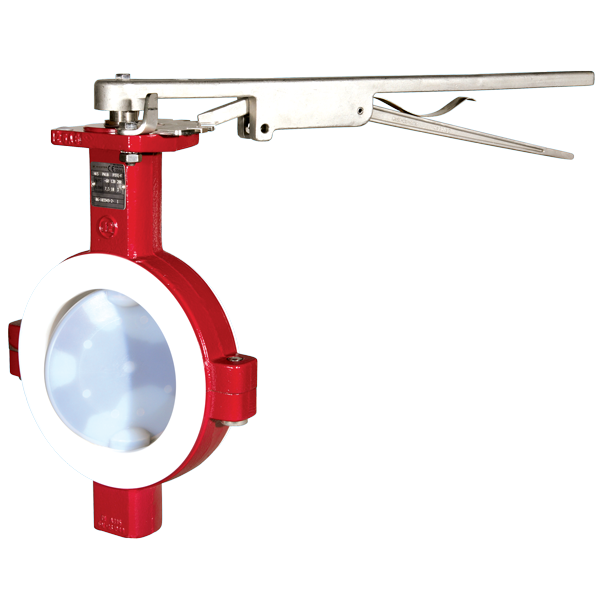

蝶閥 Butterfly Valve
產品特色：
-Single-piece disc/stem(可選哈式合金及鈦合金)及PFA內襯厚度3mm, 提供優秀抗腐蝕能力及使用壽命
-雙動、免維修、可自我調節軸密封
-可針對wet chlorine gas做客製化設計
-洩漏等級A，且具有德國Clean Air Act(TA-Luft)認證
| Design: | ASME/ ANSI or ISO/DIN | ||||||
| Nominal Size: | 2"-40", DN50-DN1000 | ||||||
| Nominal Pressure: | 10 bar | ||||||
| Lining: | PTFE, TFM-PTFE | ||||||
| Normal Temperture: | -40℃ to +200℃(-40℉ to +400℉) | ||||||
| Operating Pressure: | 0.1 mbar to 10 bar vacuum (0.0015psi to 145 psi vacuum) | ||||||
| Description: | Centric valve for installation between pipe flange (wafer-style butterfly valve), lever assembly, one-piece disc/stem unit PFA-lined, maintenance-free, self-adjusting packing stem seal | ||||||
| Options: | Safety stuffing box, monitoring connection, proximity initiator, polished disc surfaces, manually operated with limit switch | ||||||
| Certification: | EU Pressure Equipment Directive 97/23/EC, German Clean Air Act (TA-Luft), SIL | ||||||
