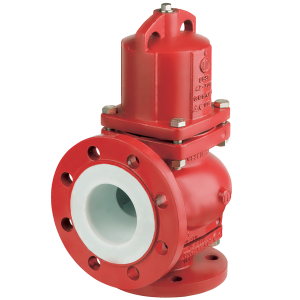

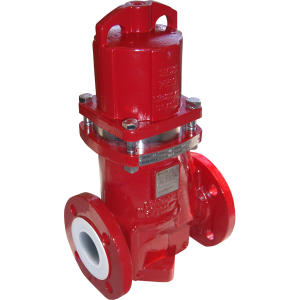

低壓安全閥Low-Pressure Safety Valves
| Design: | ASME/ANSI or ISO/DIN | ||||||
| Nominal Size: | DN50/80, DN80/100, DN100/150 | ||||||
| Nominal Pressure: | 16 Bar | ||||||
| Lining: | PFA/PTFE | ||||||
| Operating Temperture: | up to 200℃ (400℉) | ||||||
| Operating Pressure: | from -120mbar (-1.7psi) vacuum up to +120mbar(+1.7psi) guage pressure | ||||||
| Description: | Direct acting, weight-loaded, certified for vapours, gases and fluids, gauge pressure +20 to +120 mbar, vacuum -20 to -120 mbar | ||||||
| Options: | installed as an agnle valve on a vessel or as an inline valves in a pipe | ||||||
| Certification: | EU Pressure Equipment Directive 97/23/EC, German Clean Air Act (TA-Luft), SIL | ||||||
