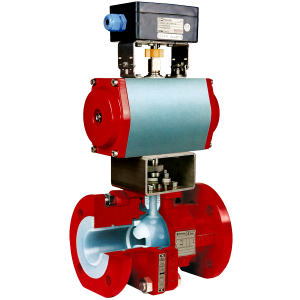

V-BALL控制閥
.png)
產品特色：
-高純度PFA內襯，且厚度達3.5mm ，另有厚度5mm可供選擇

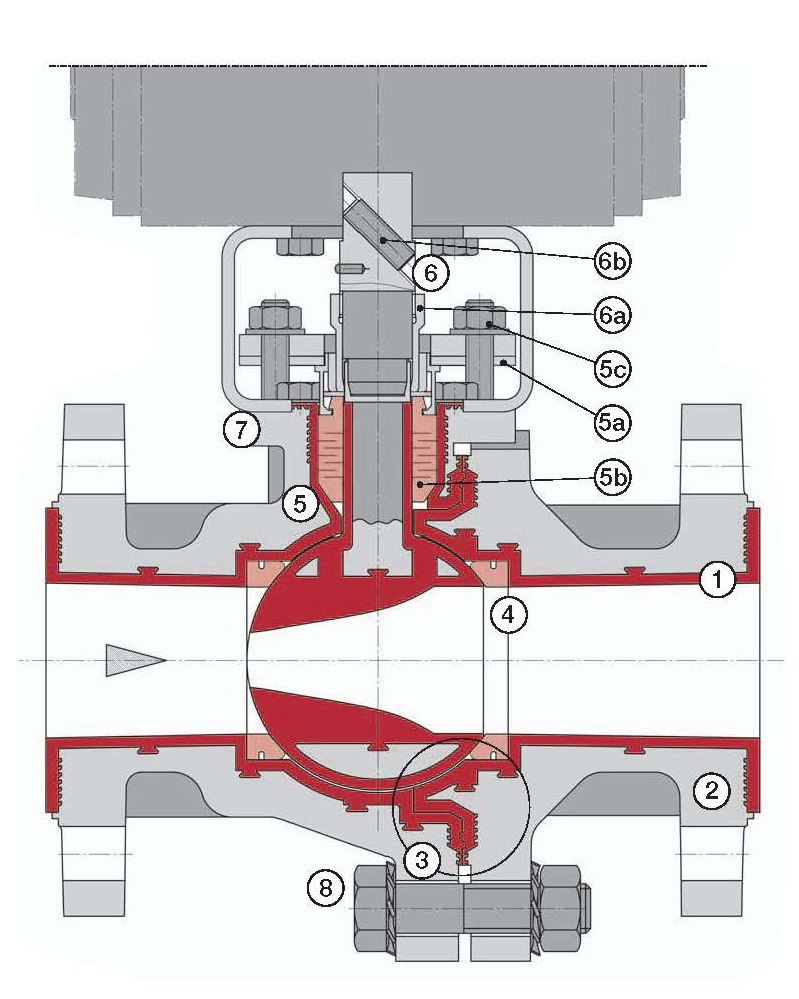

-球/桿為PFA包覆一體成形

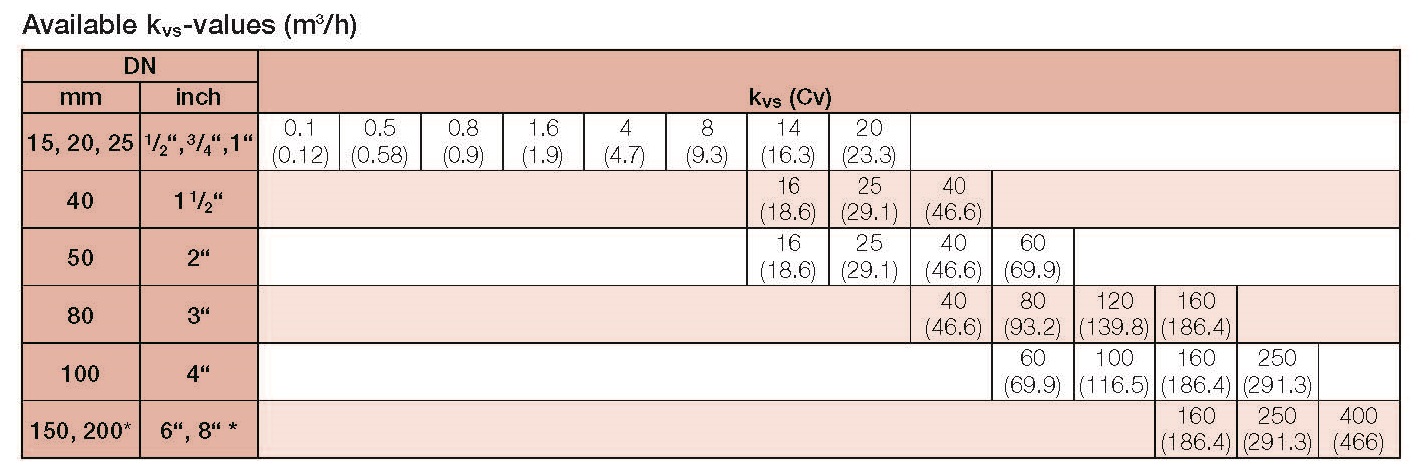

-特殊V型結構球與多種KV值可選用-控制精準接近球型控制閥
| Design: | ASME/ANSI or ISO/DIN | ||||||
| Nominal Size: | DN15-DN200, 1/2"- 8" | ||||||
| Nominal Pressure: | 16 bar | ||||||
| Lining: | PFA | ||||||
| Normal Temperture: | -60℃ to +200℃ (-75℉ to +400℉) | ||||||
| Max. Pressure: | 25 bar (365psi) | ||||||
| Description: | With control ball in one piece PFA ball/stem design, Richter maintenance-free self-adjusting ENVIPACK stuffing box, cavity reduced, seat rings of pure PTFE | ||||||
| Options: | Double packing, monitoring and flushing connection, stem extension, hand lever extension, limit switches, stainless steel heating jacket, KNAR-D with 5 mm lining | ||||||
| Certification: | EU Pressure Equipment Directive 97/23/EC, German Clean Air Act (TA-Luft), SIL | ||||||
