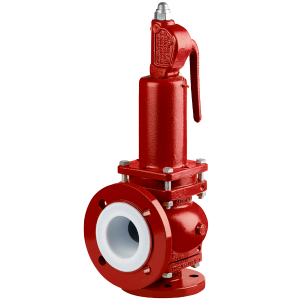

安全閥 Safety Valve
| Design: | ASME/ANSI or ISO/DIN | ||||||
| Nominal Size: | DN25/50-DN100/150, 1"/2"-4"/6" | ||||||
| Nominal Pressure: | 16 Bar | ||||||
| Lining: | PFA/PTFE | ||||||
| Operating Temperture: | -60℃ to +180℃ (-75℉ to 360℉) | ||||||
| Set Pressure: | from 0.1 to 13 bar (1.45-188 psig) | ||||||
| Description: | KSE/F, spring-loaded, direct-acting, with bellows-seal, set pressure range DN 25/50+50/80 0,1-13 bar and 0,1-16 bar with liquids, DN 80/100+100/150 0,1-10 bar, KSE-C/F, conical sealing surface, spring-loaded, direct-acting, with bellows-seal, set pressu | ||||||
| Options: | Travel stop, blocking screw, gas tight design, signal transmitter, design for heavily permeating media, shorted or without lifting lever | ||||||
| Certification: | EU Pressure Equipment Directive 97/23/EC, certified for vapours/gases and liquids, German Clean Air Act (TA-Luft) | ||||||
