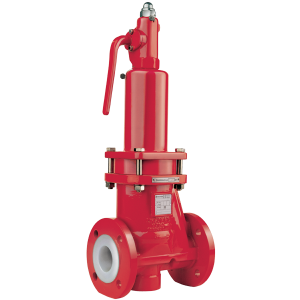

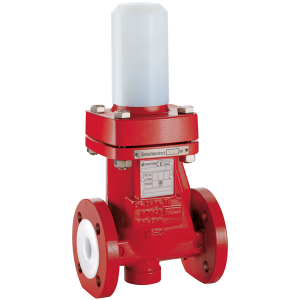

排壓閥Overflow and Pressure Relief Valve
| Design: | ASME/ANSI or ISO/DIN | ||||||
| Nominal Size: | DN25-DN100, 1"- 4" | ||||||
| Nominal Pressure: | 16 Bar | ||||||
| Lining: | PFA | ||||||
| Operating Temperture: | -60℃ to +180℃ (-75℉ tp +360℉) | ||||||
| Set Pressure: | 0.1-13 bar | ||||||
| Description: | Direct-acting, spring-loaded, set pressure 0,1-13 bar, certified for liquids | ||||||
| Options: | Gas tight design, signal transmitter | ||||||
| Certification: | EU Pressure Equipment Directive 97/23/EC, DN 25 with certification, German Clean Air Act (TA-Luft) | ||||||
