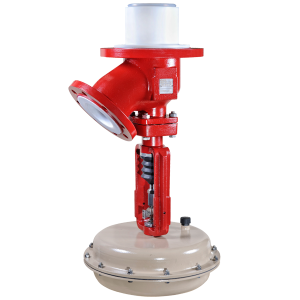

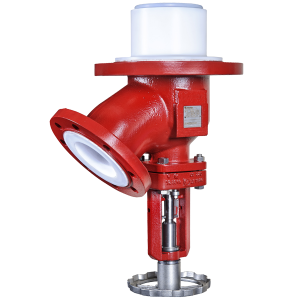

槽底閥Bottom Drain Valve
|
Design: |
ASME/ANSI or ISO/DIN |
|
Nominal Size: |
DN80/50, 100/80, 150/100 (3"/2", 4"/3", 6"/4") |
|
Nominal Pressure: |
10 Bar |
|
Lining: |
PFA |
|
Operating Temperture: |
-60℃ to +180℃ (-75℉+360℉) |
|
Operating Pressure: |
0.1mbar (0.001psi) vacuum to 10 bar (145 psi) |
|
Description: |
Cap PFA/PTFE, seat pure-PTFE, TF1620-bellows |
|
Options: |
Probe DN 100/80, 150/100 |
|
Certification: |
EU Pressure Equipment Directive 97/23/EC, German Clean Air Act (TA-Luft) |
