產品目錄 PRODUCT CATALOG
HOME > 產品目錄 > 閥 > RICHTER 鐵氟龍內襯閥 > 止回閥 Check Valve

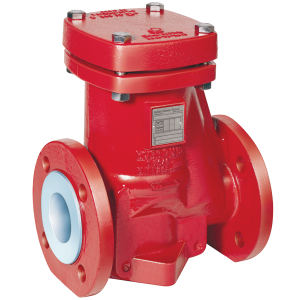

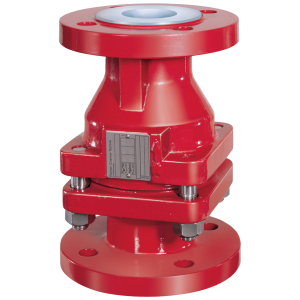

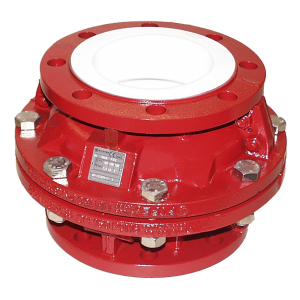

止回閥 Check Valve
產品特色：
-高純度PFA或PTFE內襯材料
-PTFE製成的實心或空心的球和閥芯
-可以水平，傾斜或垂直安装

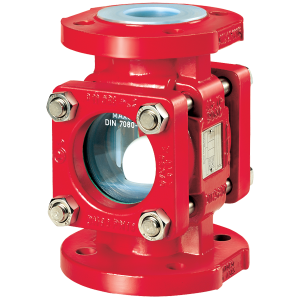

-依需求，另有視窗型止回閥
| Design: | ASME/ANSI or ISO/DIN | ||||||
| Nominal Size: | DN15-DN150, 1/2"- 6" | ||||||
| Nominal Pressure: | 16 bar | ||||||
| Lining: | PFA | ||||||
| Normal Temperture: | -60℃ to +180℃ (-75℉ to +360℉) | ||||||
| Operating Pressure: | from vacuum up to 16 bar (235psi) | ||||||
| Description: | Suitable for vertical and horizontal installation | ||||||
| Options: | solid ball, hollow ball, plug | ||||||
| Certification: | EU Pressure Equipment Directive 97/23/EC, German Clean Air Act (TA-Luft) | ||||||
