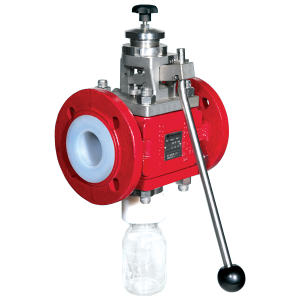

取樣閥 Sampling Valve
產品特色：
-頂部入口設計，易保養，不須將閥從管線上拆下
-外部防腐蝕保護，Epoxy包覆

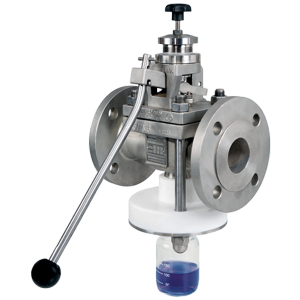

-閥體提供展性鑄鐵及不銹鋼本體材質且PFA內襯-厚度3.5mm
-可從外部做valve seat & plug之密封調節
-安全彈簧回彈(Safety spring return)保證取樣過程安全
-使用Heavy-duty PTFE bellows提升產品可靠度
| Design: | ISO/DIN | ||||||
| Nominal Size: | DN25-DN50, 1"- 2" | ||||||
| Nominal Pressure: | 16 bar | ||||||
| Lining: | PFA | ||||||
| Normal Temperture: | -60℃ to +200℃ (-75℉ to +400℉) | ||||||
| Max. Pressure: | from vacuum to max.16bar(235psi) | ||||||

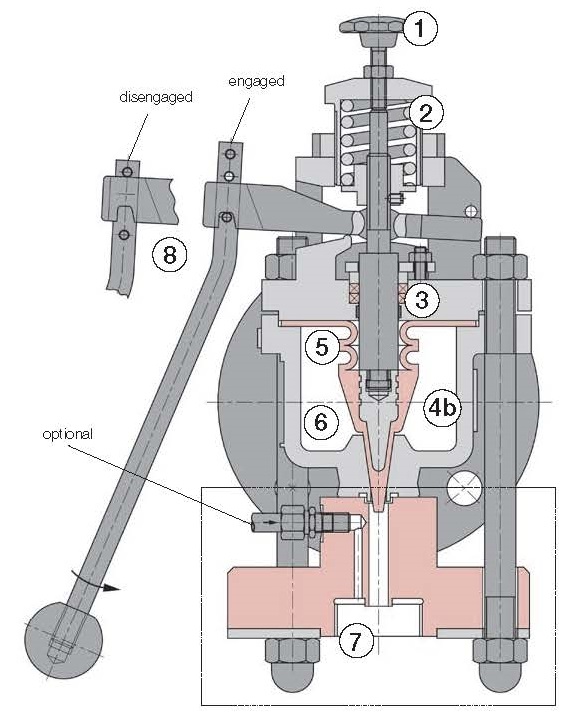

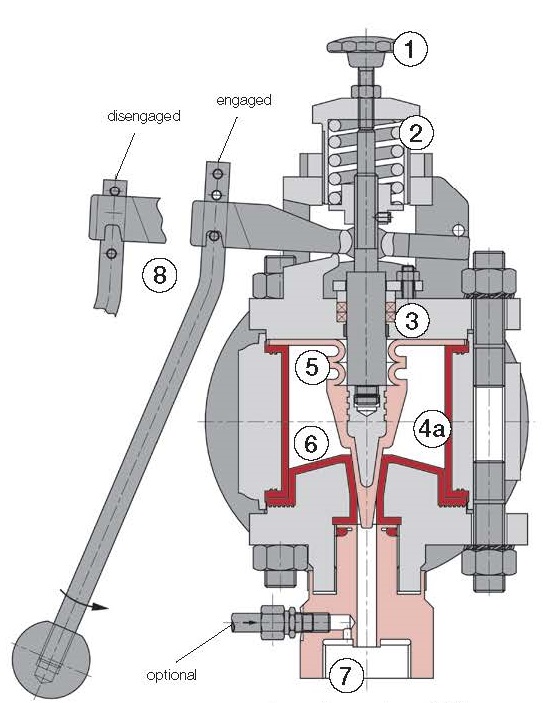

| Description: | Representative sampling due to cavity-free design, glandless due to bellow, additionally safety stuffing box, bellow and plug made of PTFE. Upper parts made of stainless steel, manually operated by lockable lever, which disengages after actuation, bottle | ||||||

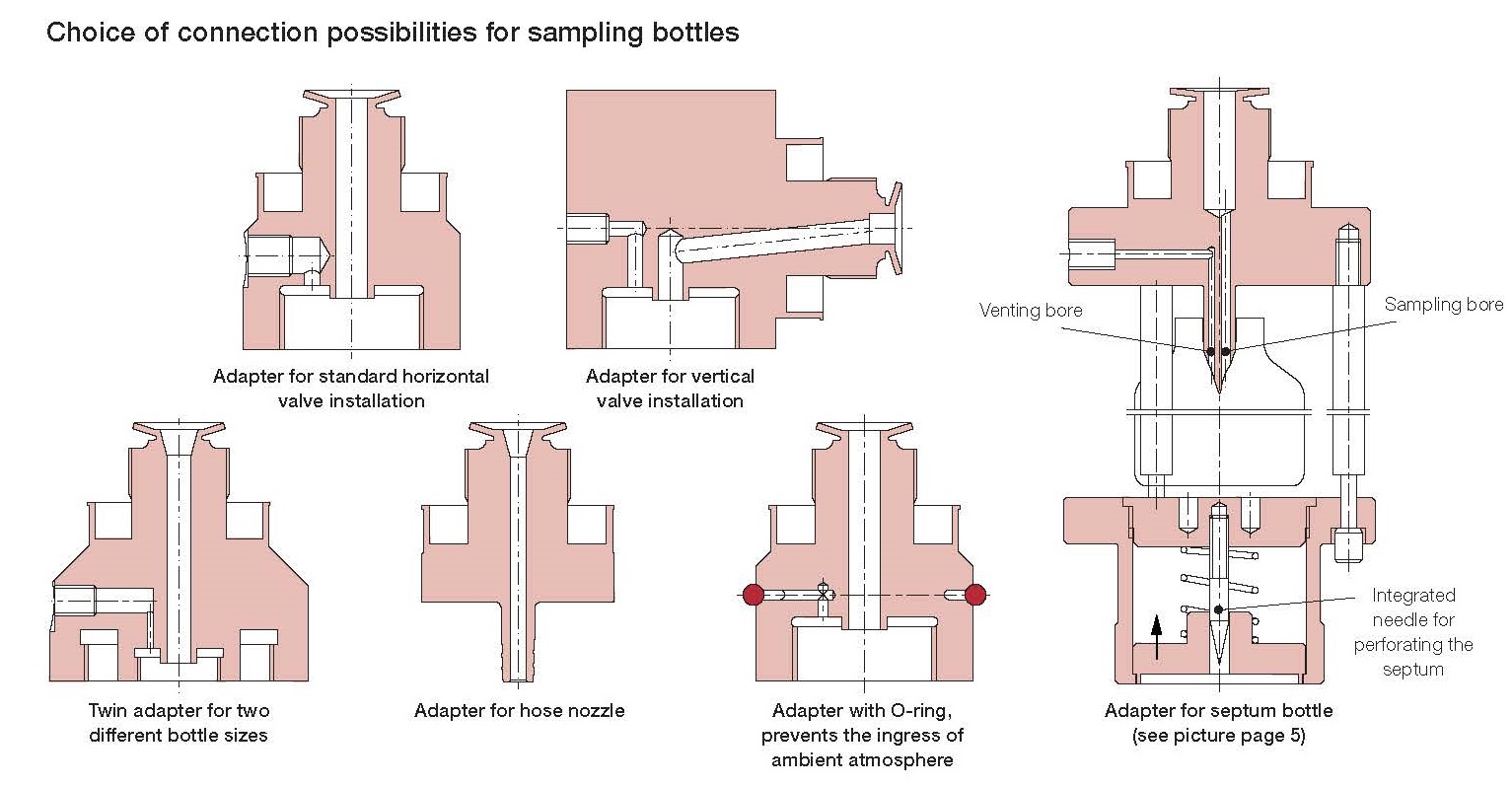

| Options: | Design for highly viscous media, low operating pressure, adapter for vertical valve installation, lever locking, protective cabinet, protective cabinet and handwheel, handwheel, actuator, adapter for sampling bottles, septum bottle, heating jacke | ||||||
| Certification: | EU Pressure Equipment Directive 97/23/EC, German Clean Air Act (TA-Luft) | ||||||
