產品目錄 PRODUCT CATALOG
HOME > 產品目錄 > 閥 > RICHTER 鐵氟龍內襯閥 > 視窗閥Sight Glass

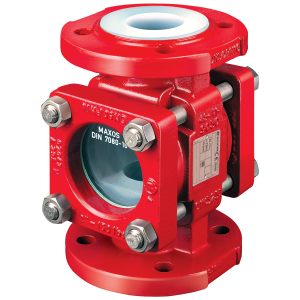

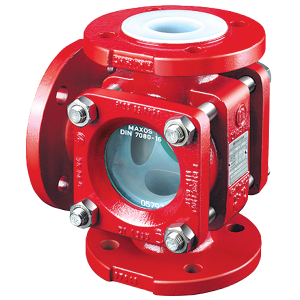

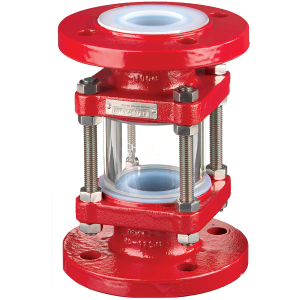

視窗閥Sight Glass
產品特色：
-內襯為PFA或PTFE
-玻璃面板和柱狀玻璃
-外部防腐蝕保護，Epoxy包覆
| Design: | ASME/ANSI or ISO/DIN | ||||||
| Nominal Size: | DN15-DN200, 1/2"- 8" | ||||||
| Nominal Pressure: | 16 Bar | ||||||
| Lining: | PFA | ||||||
| Normal Temperture: | -60℃ to +180℃ (-75℉ to +360℉) | ||||||
| Operating Pressure: | from vacuum up to 16 bar (235psi) | ||||||
| Description: | Design according to DIN 3237 part 2, sight glass panes of borosilicate glass to DIN 7080, with integrated drip lip, cover flanges separately fixed | ||||||
| Options: | Flexicord strip as an additional flow, double glass panes, seal in the bypass connection | ||||||
| Certification: | EU Pressure Equipment Directive 97/23/EC, German Clean Air Act (TA-Luft) | ||||||
